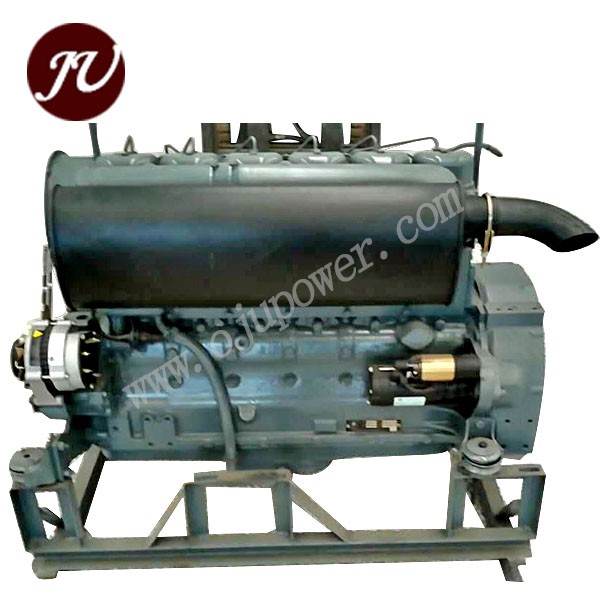

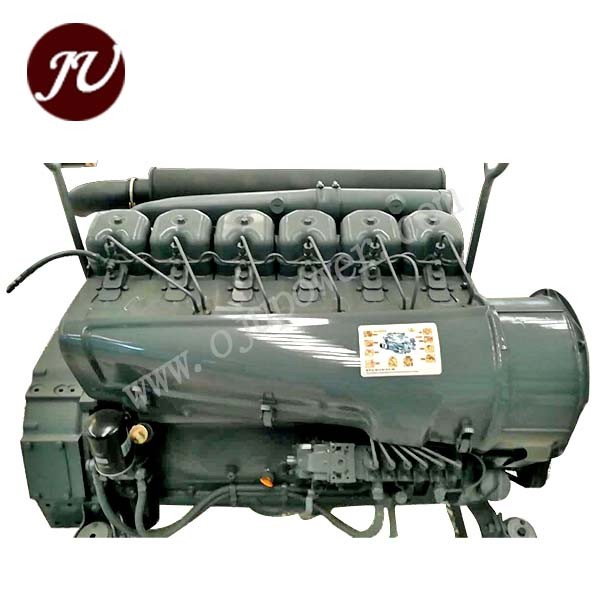

6 cylinder deutz air cooled engine F6L914 for construction



Products Visitors:1313
  • Product Name:6 cylinder deutz air cooled engine F6L914 for construction
  • Model:air cooled deutz F6L914
  • Size:1100*800*800mm
  • Package:wooden case


Original deutz engine F6L914 for construction, generator etc.

Engine 914 detail:

914 Series
Engine Model F4L914 F6L914 BF6L914 BF6L914C 　 　
Cyl NO.and Arrangement 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin 　 　
Air-intake way Natural intake Natural intake Turbo-charged  Turbo-charged cooling 　 　
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke 　 　
Displacement(L) 4.314 6.472 6.472 6.472 　 　
Bore/Stroke(mm) 102*132 102*132 102*132 102*132 　 　
Compression Ratio 20∶1 18∶1 18∶1 18∶1 　 　
Power/Rev    kW/rpm 2300 50 79 112 125 　 　
Power/Rev    kW/rpm 2500 56 85 115 137 　 　
Max torque(N.m) 270 400 550 690 　 　
at speed(rpm) 1600 1600 1600 1600 　 　
Minimum idle speed(rpm) 〈750 〈750 〈750 〈750 　 　
Specific fuel consumption
(g/kW.h) 		209 209 206 206 　 　
Weight(kg) 310 420 485 510 　 　

More other Genuine Deutz engine:

Common Rail Series
Engine Model F3L912E F4L912E F6L912E F4L914E F6L914E BF6L914
Cyl NO.and Arrangement 3-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin
Air-intake way Natural intake Natural intake Natural intake Natural intake Natural intake Turbo-charged
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke
Displacement(L) 2.828 3.77 5.655 4.314 6.472 6.472
Bore/Stroke(mm) 100*120 100*120 100*120 102*132 102*132 102*132
Compression Ratio 17∶1 17∶1 17∶1 20∶1 18∶1 18
Power/Rev    kW/rpm 2300 36 46 74 56 87 112
Power/Rev    kW/rpm 2500 38 51 78 59 89 118
Max torque(N.m) 165 230 345 270 400 550
at speed(rpm) 1600 1600 1600 1600 1600 1600
Minimum idle speed(rpm) 〈750 〈750 〈750 〈750 〈750 〈750
Specific fuel consumption
(g/kW.h) 		221 221 221 209 209 206
Weight(kg) 275 300 410 310 420 485
912 Series
Engine Model  F2L912 F3L912 F4L912 F4L912T F6L912 F6L912T
Cyl NO.and Arrangement 2-Cyl in-lin 3-Cyl in-lin 4-Cyl in-lin 4-Cyl in-lin 6-Cyl in-lin 6-Cyl in-lin
Air-intake way Natural intake Natural intake Natural intake Turbo-charged Natural intake Turbo-charged
Cooling system and stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke Air-cooled 4-stroke
Displacement(L) 1.88 2.828 3.77 3.77 5.655 5.655
Bore/Stroke(mm) 100/120 100/120 100/120 100/120 100/120 100/120
Compression Ratio 17∶1 17∶1 17∶1 17∶1 17∶1 17∶1
Power/Rev    kW/rpm 2300 20 36 46 　 74 　
Power/Rev    kW/rpm 2500 　 38 51 　 78 　
Max torque(N.m) 105 170 230 　 345 　
at speed(rpm) 1600 1600 1600 1600 1600 1600
Minimum idle speed(rpm) 〈750 〈750 〈750 〈750 〈750 〈750
Specific fuel consumption
(g/kW.h) 		230 221 221 　 221 　
Weight(kg) 245 275 300 315 410 420
